DRS installation

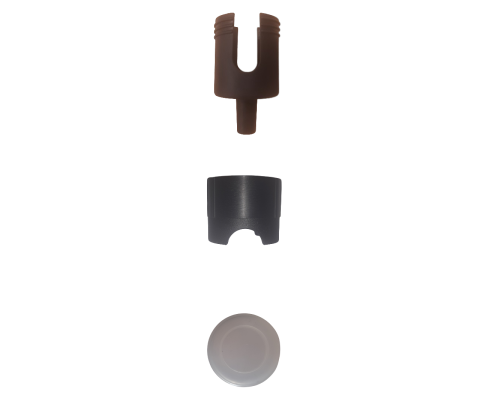

The DRS System consists of three parts, which when assembled form the Underground Irrigation Device (DRS).
- Glass
- Compressor ring
- Top
When assembled, as described below in steps/images, the DRS encapsulates the dripper, bringing water and fertilizers directly to the roots, while remaining attached to the irrigation system pipe.
FACILITY
Step 1

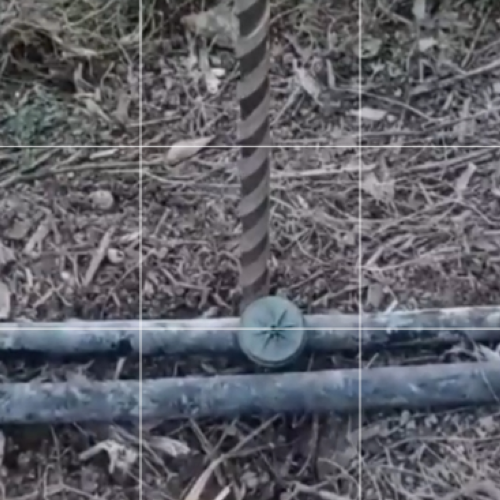

Make the irrigation hole, a hole diameter of 18-20 mm is recommended, since the DRS drainage spout is for 16 mm pipe.
Depending on the type of terrain, the irrigation hole to be made is of different depth, it is recommended
- Good drainage: 40-50 cm.
- Average drainage: 50-60 cm.
- Poor Drainage: 60-80 cm.
FACILITY
Step 2

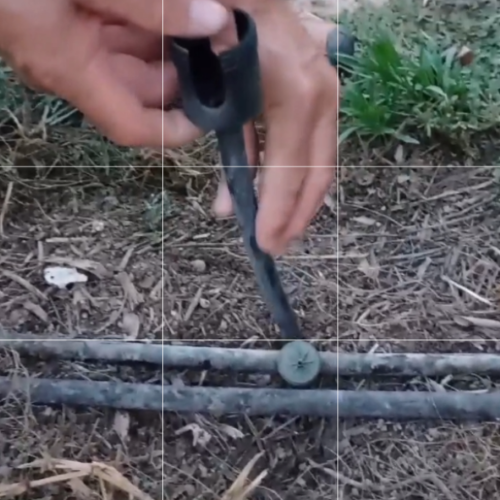

The drainage tube (diameter 16 mm), which is attached to the spout of the DRS vessel, must have a length of between 15-20 cm.
Once the tube is placed in the DRS cup, the tube is inserted into the hole made in the ground.
The drainage tube has the function of taking the water from the dripper directly to the depth of the roots and maintaining humidity in the subsoil.
FACILITY
Step 3
Place the pipe with the dripper, between the side slots, and leave the dripper inside the DRS glass.
FACILTY
Step 4

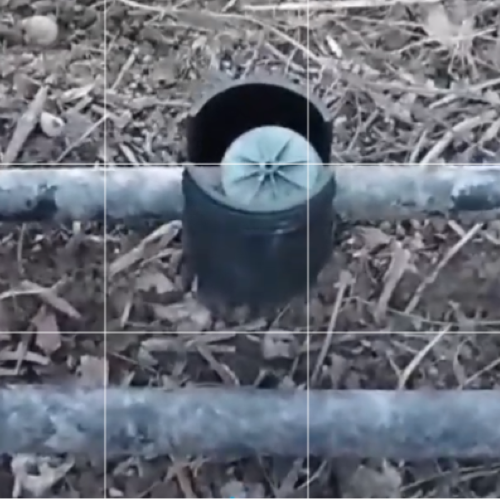

Place the compressor ring so that the openings coincide with the pipe and that the dripper remains inside.
FACILITY
Step 5

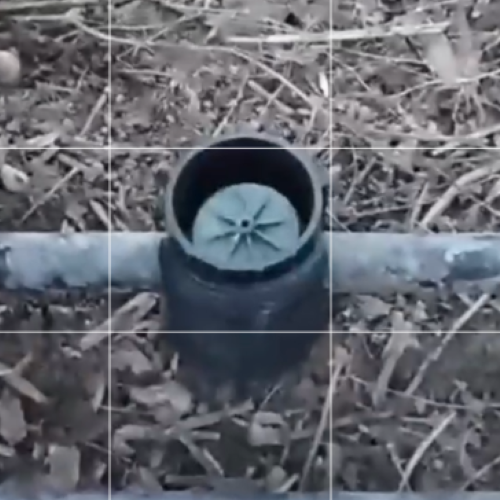

Screw the transparent lid onto the DRS cup so that it stays in place. When screwing on the cover, it puts pressure on the compressor ring so that the pipe is attached to the DRS.
